Descripción
Features
- Suitable for use with two stereo, or four mono amplifiers
- Powered by FlatCap XS, HiCap or SuperCap power supply
Technology & Craft
The SNAXO 242 can be used in bi-amplified systems with two stereo amplifiers, or in a four-pack system using four mono amplifiers. Power to the unit is supplied by a FlatCap XS, HiCap or SuperCap audio power supply. When ordering a SNAXO, you should specify which loudspeaker model this will be used with, as we tailor the components within each SNAXO for use with specific loudspeakers.
SPECIFICATIONS
| Line Outputs Fixed (level) | 775mV |

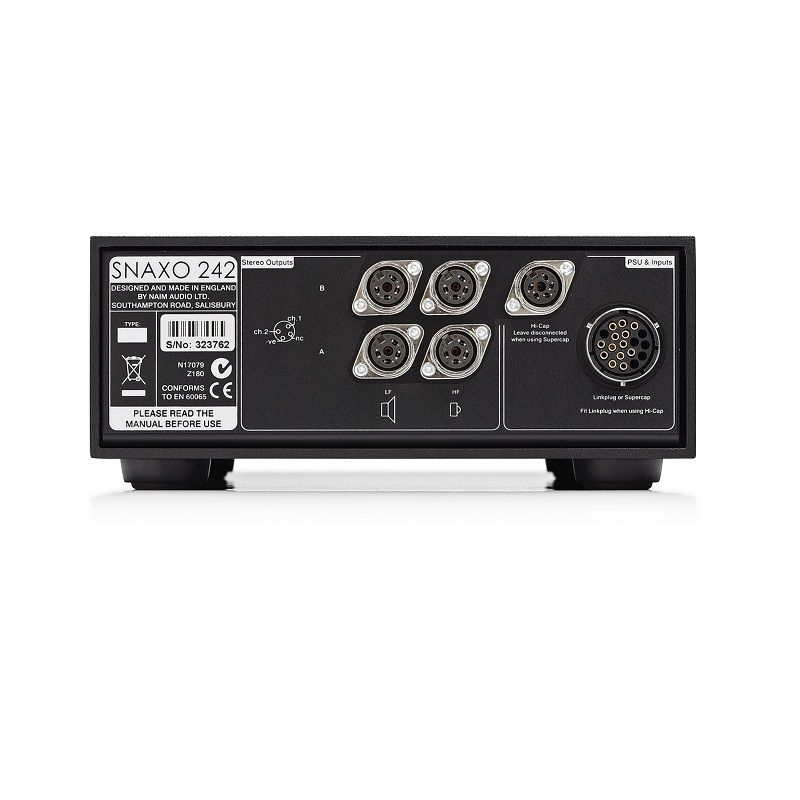

| Analogue | 4 x 4-pin DIN |
| Minimum Load Impedance | 10kΩ |
| Case | Black powder coated |
| Front | Bead blasted and black anodised |
| Shipping Dimensions | 210 x 280 x 410 mm |
| Dimensions (HxWxD) | 87 x 207 x 314 mm |
| Power Supply Options | FlatCap XS, HiCap, SuperCap |
| Supply Voltage | 24V |
| Supplied with | SNAIC |
