Descripción
W4S DAC-2 DSDse Features:
*Indicates an upgrade from the standard DAC-2 configuration*
ESS Reference audio (ES9018) 32 bit DAC
W4S proprietary discrete output stages
*Femto Grade Clock*

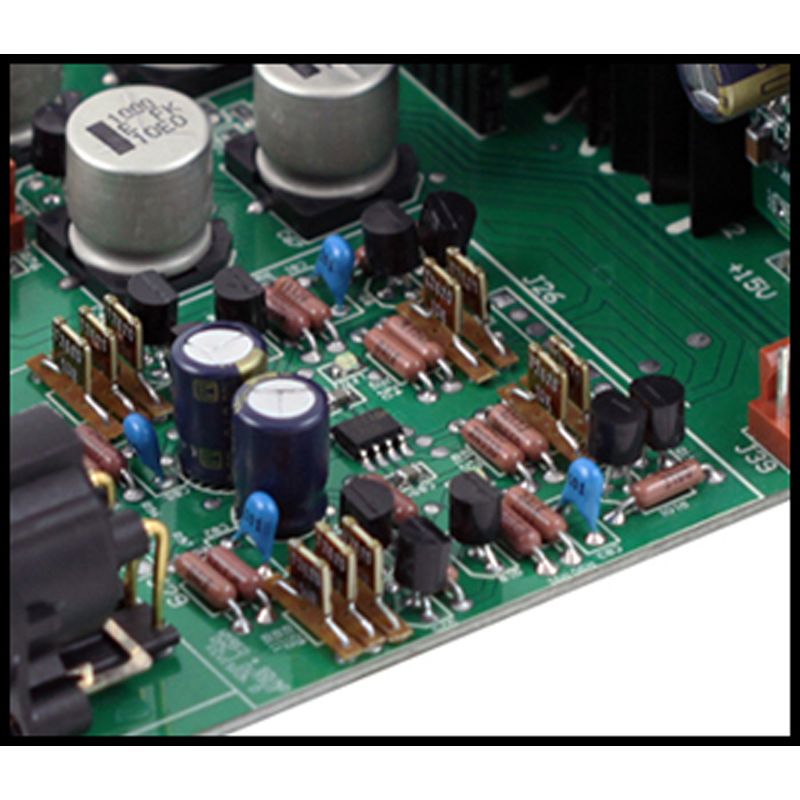

*Custom Vishay Z-Foil resistors (0.1% tolerance and a /-0.5ppm/°C)*

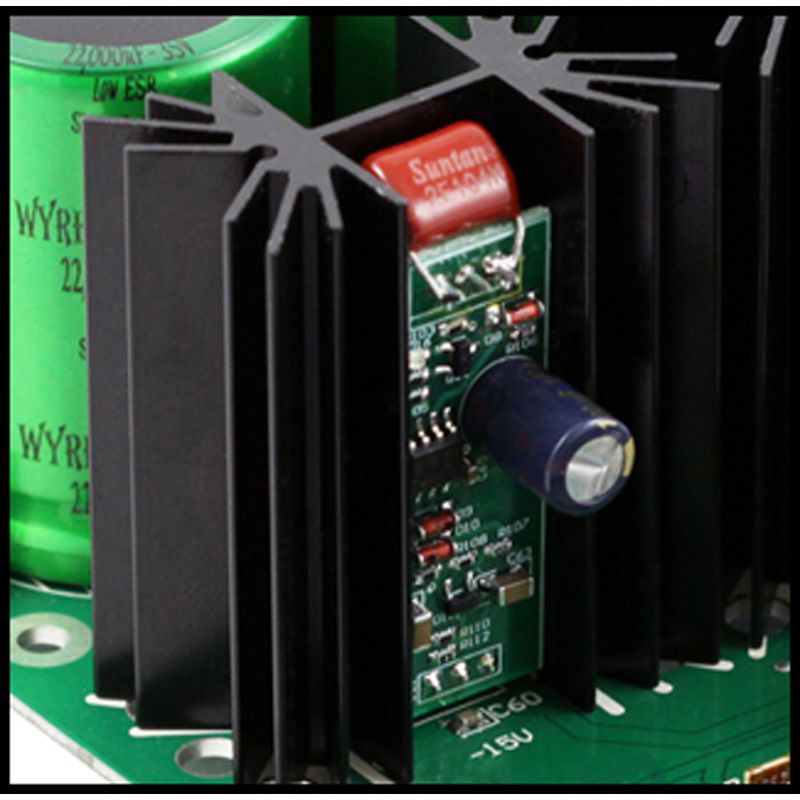

*Ultra-low noise discrete regulators (100 times quieter and faster than the stock regulator)*
*Ultra-fast recovery Schottkey diodes*
*Premium grade inductors*
*Rhodium plated Furutech fuse*
ESS Time Domain Jitter Eliminator®
Automatic oversampling for precise output filtering

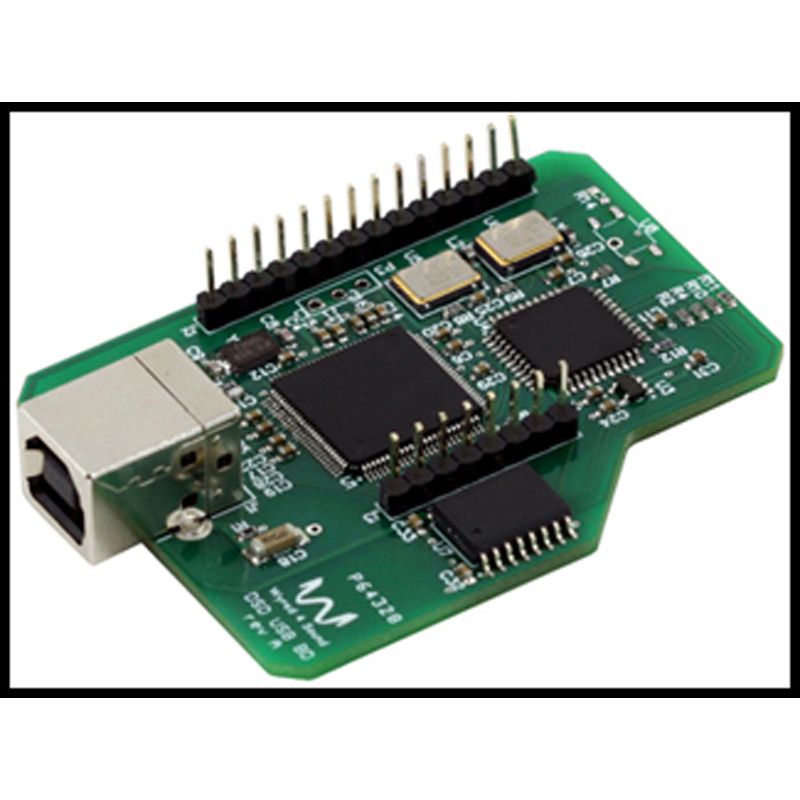

Asynchronous USB input supports 32-bit 384kHz and DSD64 DSD128
Fully balanced design with balanced and unbalanced outputs
Upgradable Digital, Output, and USB boards (designed for future improvements)
Oversized toroidal transformer for solid and noise-free power
88,000uF of filtering with W4S low ESR «super-cap» (same as used in the STP-SE)
*Green OLED display for input, sample rate, volume control, and configuration viewing*
Remote control with features such as balance control and phase inversion (Also compatible with universal remotes to allow discrete input selection)
Defeatable – 32 bit volume control
HT Bypass inputs (selectable via DC trigger)
2x Coax inputs
2x Toslink inputs
1x AES/EBU input
1x Balanced I2S input via HDMI cable (not standard HDMI cable format)
Factory selectable mains 115/230VAC
Compact size (8.5″W x 4.125″H x 13.5″D)
14 lbs.
Covered by a 5 YEAR WARRANTY
